Road Network Efficiency Improvement

As part of its responsibilities, LAMATA has continued to improve on the quality of roads specified under the Declared Road Network (DRN) which is under its supervision. Since the commencement of Lagos Urban Transport Project (LUTP 1) in 2005, substantial IDA funds have been invested in this component due to the deplorable state of roads that existed before LUTP interventions on the 632 km DRN, identified as main bus public transport routes.

Maintaining, upgrading and rehabilitating the strategic road network is vital for proper planning and development of other sub-sector modes (Bus, BRT, Rail, Ferry, Traffic Management System, Non-Motorised Transport), within an effective integrated multimode public transport system. There were basically 4 types of road maintenance interventions implemented under this component. These are routine, recurrent, periodic and rehabilitation.

# Classification of Maintenance Details of works
1 Routine Works involve drainage clearing to reduce flooding, road sweeping and cleaning, vegetation trimming and haulage of disposable materials.
2 Recurrent Works involve filling or sealing of cracks, repair of potholes, treatment of swellings, depressions, etc. on the roads.
3 Periodic Works involve application of asphalt overlays, reconstruction of walkways, road markings, and installation of concrete lined drains to control flooding. They also involve some minor Traffic System Measures such as signage and traffic light installation at some junctions
4 Rehabilitation The rehabilitation works involve reconstruction of pavements and application of an overlay of 50-millimeter thick hot rolled asphalt wearing course. It also involves the reconstruction of drainage systems, kerbs, and pedestrian walkways.

Routine & Recurrent Maintenance

405 routine maintenance contracts were awarded and implemented on the entire DRN throughout the project cycle. Under recurrent maintenance, 104 contracts were awarded and implemented on 275km of roads during the same period.

Rehabilitation Maintenance:

Interventions were carried out and completed on 51.5km of roads. These are;

  • Alaba/Ojo-Igbede & Old Ojo [Ojo], Adetola, Babs Animashaun, Ojerinde & Fagbenro [Surulere]
  • Bishop Oluwole, Saka Tinubu, Idejo, Kofo Abayomi, Apese, Ologun Agbaje, Eletu Ogabi, Agoro Odiyan & Ogalade Close [All V/Island] & Keffi [Ikoyi]
  • Ayo Alabi [Ikeja], Command [Ipaja], Ladipo [Mushin], Ikotun/Ijegun [Alimosho], Ipakodo [Ikorodu]
  • Mile12-Jibowu & Jibowu-Mile 12 [Ikorodu Road Service Lane]
  • Segregated busways along Mile12-CMS BRT corridor
  • Mobil intersection at Ogba

Road Interventions

On behalf of LASG, LAMATA commenced implementation of the following road maintenance projects in 2010:

  • Rehabilitation maintenance of Abagbon Close, Amodu Ojikutu Street and Ibiyinka Olorunibe Close [All V/Island Lagos]. [completed]
  • Recurrent maintenance works on selected roads within the metropolis. [Ongoing]
  • Channelization of Ogba drainage system to Omole Phase 1 gorge. [Ongoing]
  • Rehabilitation maintenance of Aboyade Cole Street, Samuel Manuwa Street, Ligali Ayorinde [link] Road, Sinari Daranijo Street, Adeola Hopewell/Akinbo Savage Street and Olosa Street [All V/Island]. [Proposed]

Periodic Maintenance

Interventions were carried out and completed on 45km of roads. These are;

  • Akerele, Bode Thomas, Tejuosho, Olatunde Onimole, Kushimo, Enitan, Olubunmi Alonge & Agbebi [All Surulere]
  • Queens & Bauchi [Apapa], Gaskiya & Okoya [Orile], Arowojobe [Oshodi], Oko Oba/Old Abeokuta, Alfa Nla, Iju & Agege Byepass [Agege]
  • Town Planning [Ilupeju], Little & St. Finbarr’s [Yaba], Demurin [Ketu], Fola Agoro & Pedro [Bariga], Community [Ojo]

Rehabilitation of Sinari Daranijo Street V.I

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
1 Rehabilitation of Sinari Daranijo Street V.I. The road is located in Victoria Island with a total length of 1120m. It exists in a built up area with valuable properties adjoining it. The existing pavement has failed in many sections mainly due to poor drainage system.

Many of the observed shortcomings in the traffic system of Lagos stem from management weaknesses. These include

  • Clearing of all debris along the road way
  • Scarification of existing asphaltic bituminous surface
  • Removal of any unsuitable materials to the required depth
  • Grassing to slope of embankment, shoulders and roundabout:
  • Provision of sand for filling to make up level
  • Desilting of concrete side drains and culvert
  • Provision and construction of concrete side drains
  • Provision of precast concrete grade 25 slab on walkway as directed
  • Provision, spreading and compaction of sharp sand material as sub-base
  • Provision, spreading and compaction of crushed stone as base course materials to receive pre- cast interlocking blocks
  • Provision of concrete kerbs including haunching as directed
  • Provision of parking areas
  • Provision of traffic signs,road marking and approved thermoplastic paint on kerbs
  • Street Lighting
  • Some trees may be removed with the approval of the Ministry of Environment.

Upgrading of Akin Adesola Road Works

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
2 Upgrading of Akin Adesola Road WORKS
(WB )		 The road is located in Victoria Island with a total length of 1635m. It exists in a built up area with valuable properties adjoining it. The existing pavement has failed in many sections mainly due to poor drainage system.
  • Same as Sinari Daranijo

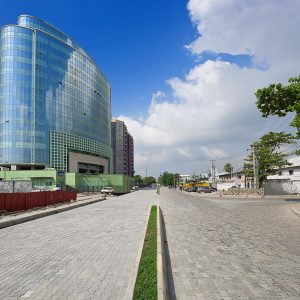

Rehabilitation of Abimbola Awoniyi Close, Sir Samuel Manuwa Street and Bishop Aboyade Cole street, VI

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
3 Rehabilitation of Abimbola Awoniyi Close, Sir Samuel Manuwa Street and Bishop Aboyade Cole street, VI The roads are located in Victoria Island with a total length of 1786m. They exist in a built up area with valuable properties adjoining them. The existing pavements have failed in many sections mainly due to poor drainage system.
Abimbola Awoniyi Close: 1116m Sir Samuel Manuwa Street: 520m Bishop Aboyade Cole street, VI: 150m

Construction of Drainage Channel Wempco, Road

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
4 Construction of Drainage Channel Wempco, Road The project begins from the left side (coming from Ijaiye road) of Wempco road at CH 1+175 and the channel runs through the length of Wempco road to finally discharge into the Gorge at Agidingbi giving an entire length of about 1800m.
  • Excavation of trench for main drain to a depth not exceeding 2.00-3.00 metres;
  • Provide, place and compact materials for foundation improvement;
  • Provide and place concrete mix 1:3:6 in blinding layer base 75mm prior to construction of base slab;
  • Provide and place concrete mix 1:2:4 in base slabs and sidewalls (2m x 2m);
  • Provide, bend and fix high tensile steel reinforcement of all diameters in bottom slab, sidewalls and covered slabs;
  • Provide sewn formwork for concrete;
  • Provide and lay UPVC pipes 100mm dia. X 20m long for fire hydrant embedded in concrete surround to cross road at points;
  • Provide, spread, shape and compact to 100% West African Standard compaction 150mm thick selected material as sub base for adjoining junctions;
  • Provide, spread, shape and compact to 100% West African Standard compaction 150mm thick natural rock laterite as base for adjoining junctions;
  • Clear road (for adjoining junctions), provide and lay as prime coat MC1 cut back bitumen at 0.9 litres/m2 including blinding with sharp sand or quarry fines;
  • Provide and spray bituminous tack coat;
  • Provide lay and compact asphaltic concrete wearing course to a compacted thickness of 50mm for adjoining junctions;

Rehabilitation of Ajelogo Market Street, Mile 12

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
5 Rehabilitation of Ajelogo Market Street, Mile 12 The road is approximately 600m with an average width of 17m. Prominent features along the road include an ultra-modern market, a fuel station and land mass for the proposed Akanimodo Residential Development. The road is to become an arterial road in the future once the residential development is actualised;
  • Clearing of all debris along the road way;
  • Scarification of existing asphaltic bituminous surface;
  • Removal of any unsuitable materials to the required depth;
  • Grassing to slope of embankment, shoulders and roundabout;
  • Provision of materials for filling to make up levels
  • Relocation of services such as PHCN electric poles, water pipes;
  • provision of subbase not exceeding a compacted layer of 150mm and crushed stone as base to a specified thickness of 200mm;
  • Repair and reconstruction of culverts and drains;
  • Provision, laying and compaction of sand bed to receive 80mm thick pre- cast interlocking blocks;
  • Provision and installation of concrete kerbs as haunching.
  • Provision of median and roundabout;
  • Provision of street lights, traffic signs and road markings;
  • Construction of retaining walls as protection for high embankment along the road.

Rehabilitation of WEMPCO Road, Ogba.

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
6 Rehabilitation of WEMPCO Road, Ogba. The project begins from the Mobil Junction at Oba Ogunnusi Road and ends at Lateef jakande Junction. This gives a total length of about 1965m. It is a major Road that connects Ikeja, Ogba, Agege environs.
  • Relocation of services;
  • Clearance of Right of Way/scarification of existing surface;
  • Dualization of the entire road stretch (7.3m both sides);
  • Provision of 1.5m width median;
  • Provision of parking bay;
  • Provision and construction of cycle lanes;
  • Provision of new walkways;
  • Drainage reconstruction/repairs;
  • Junction improvement to include additional left-turn lanes and new traffic signs and signals- (See Annexure 2 for the cross section drawing).
  • The proposed road pavement is designed to be asphaltic concrete. The proposed road furniture includes upgrade of the existing traffic lights, traffic signs, introduction of pedestrian crossings and road markings./li>

Periodic Maintenance of Lisabi/Apata Road

# PROJECT TITLE DESCRIPTION SCOPE OF WORK
7 Periodic Maintenance of Lisabi/Apata Road The road starts at Lisabi Street and flows into Apata Street.Apata/Lisabi Street is approximately 1500m long with an average width of 7.3m. It is a link between Salami-Shuaibu-Bariga Road and Morocco Road. There is congestion on the road especially at Ch.0+000 beginning of Lisabi Street
where commercial tricycles (Marwa) pick and drop passengers and Ch.1+350 which is a
T-junction near Eco-Bank.
  • Repair and reconstruction of weak drains/culverts.
  • Provision and construction of drain cover slabs to be used as walkways.
  • Provision, laying and compaction of 50mm thick asphaltic concrete over the entire length of the road.
  • Traffic safety measures (road marking)
